The Complete Guide to Laser Cutting Software

1. What is Laser Cutting Software?

Laser cutting software is a broad term covering three distinct categories of tools that fabrication shops use to run their businesses. Most shops need at least one; many end up with all three.

Quoting software calculates job costs from part geometry. You upload a DXF, DWG, or STEP file, and the software works out cutting time, material cost, gas consumption, pierce counts, and secondary operations to produce an accurate quote. The best tools do this in seconds, not hours.

Nesting software arranges parts on sheet material to maximise material usage and minimise waste. This ranges from basic rectangular bounding-box nesting (which most quoting tools include) to true-shape nesting engines that rotate and interlock irregular parts for 80%+ sheet utilisation.

Production management covers everything after the quote is accepted: job cards, operator time tracking, scheduling across machines, packing slips, delivery notes, and invoicing. This is where quoting software overlaps with manufacturing ERP.

The challenge for most shops is that these three categories have historically been separate products from separate vendors, each with their own data entry, file formats, and pricing. Modern platforms are increasingly combining all three into a single tool — which saves time, reduces errors, and means your quote price actually reflects your real production costs.

2. Key Features to Look For

Not all laser cutting software is created equal. Here are the features that separate genuinely useful tools from the ones that look good in a demo but fall short in daily use.

3. Quoting & Pricing Engines

The quoting engine is the core of any laser cutting software. It takes a part file, analyses the geometry, and calculates a price. But how it does this varies enormously between products.

What good quoting software does

The best quoting engines use velocity profile modelling to calculate cutting time. This means they simulate how your laser actually moves — accelerating into straight runs, decelerating around corners, pausing for pierce points, and making rapid moves between cuts. The result is a cutting time that matches what your machine will actually do, not a rough estimate.

On top of cutting time, the software should calculate material cost (from your actual sheet prices and nesting efficiency), gas consumption, machine hourly rate, setup time, and any secondary operations. All of this should be configurable per machine, per material, and per thickness.

Look for software that supports multiple pricing modes. Some shops work on a fixed margin over costs. Others target a specific net profit percentage. The best tools support both and let you set different strategies for different customers.

What to avoid

Be wary of tools that calculate cutting time from simple per-metre rates. A complex part with 200 pierce points and tight corners will take dramatically longer than a simple rectangle with the same total cut length — a per-metre rate can't account for this.

Also avoid tools that charge per-quote transaction fees. At high volume, these add up fast and create a perverse incentive to avoid re-quoting when parameters change.

4. Nesting Software Explained

Nesting is how parts are arranged on sheet material before cutting. The efficiency of your nesting directly impacts material cost, which is typically the largest component of a laser cutting job.

Types of nesting

Rectangular / bounding-box nesting treats each part as a rectangle and arranges these rectangles on the sheet. It's fast and simple, but wastes material on irregular parts because the gaps between bounding boxes aren't filled.

True-shape nesting uses the actual part contours to arrange pieces, rotating and interlocking them to fill gaps. A good true-shape nesting engine achieves 80-90%+ sheet utilisation on typical jobs, compared to 50-65% for bounding-box methods. On a busy shop cutting 50+ sheets per week, this difference pays for the software many times over.

Common-line nesting goes further by sharing cut edges between adjacent parts, reducing total cut length and kerf waste. This is most effective for simple geometric parts.

Integration matters

The biggest trap with nesting software is buying a standalone nesting tool that doesn't talk to your quoting system. If your quote assumes 70% sheet utilisation but your actual nesting achieves 85%, you're leaving money on the table — or vice versa. The best approach is a platform where nesting results feed directly back into your quote pricing.

5. Production & Shop Floor Management

Once a quote is accepted, it becomes a job. Production management software tracks that job from order through programming, cutting, secondary operations, quality control, packing, and delivery.

Key capabilities to look for:

• Job cards — Printable or digital work orders with part details, materials, quantities, and routing.
• Operator time tracking — PIN-based shop floor login so operators clock on/off jobs without needing a full user account.

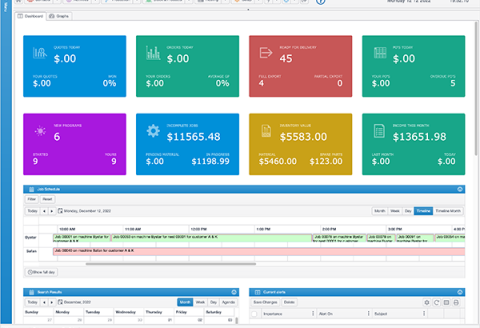

• Visual scheduling — Gantt chart or calendar view showing machine load, job dependencies, and delivery dates.
• Packing slips & delivery notes — Auto-generated from completed jobs, tracking what was delivered and when.
• Assembly management — Group related parts into assemblies with dependency tracking (don't ship the weldment before all parts are cut).
• Customer notifications — Automatic emails when orders are confirmed, in production, or shipped.

Production features are typically only available on higher-tier plans, which makes sense — a one-person shop quoting from a garage has different needs than a 20-person fabrication facility running three shifts.
